Archived Meteorological Data

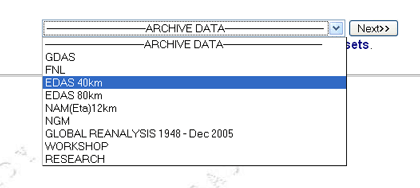

Likewise there are currently 9 archived data sets available under the ARCHIVE DATA drop-down menu, all of which are stored on internal NOAA ARL computers.  All archived data sets except the NCEP/NCAR Global Reanalysis are obtained from NOAA's National Centers for Environmental Prediction (NCEP) and have been automatically converted to HYSPLIT compatible format.  The Global Reanalysis data sets are obtained in a similar fashion from the National Center for Atmospheric Research (NCAR).

ARL Archive

• NAM (North American Mesoscale - 12 km, 3 hourly, 31 day rotating files),
• EDAS/NDAS (NAM Data Assimilation System - 40 km, 3 hourly, 2005-present),
• EDAS (Eta Data Assimilation System - 80 km, 3 hourly, 1997-2004),
• NGM (Nested Grid Model - 91 km, 2 hourly, 1991-1997),

• GDAS (Global Data Assimilation System - 1 degree lat/lon, 3 hourly, 2005-present),
• FNL (Global Data Assimilation System (Final) - 191 km, 6 hourly, 1997-2006),
• NCEP/NCAR Reanalysis 2.5 degree lat/lon, 6 hourly, 1948-present).

• WORKSHOP - Meteorological data from HYSPLIT workshop,
• RESEARCH - Temporary data sets
